Does C6 transmission have overdrive?

Does C6 transmission have overdrive?

Adding overdrive to a C6 is physically impossible, but the 4R100 can donate its forward planetary gear set for shorter first and second gear ratios. This creates a “wide-ratio” C6.

How many gears does a C6 transmission have?

The 3 gears selected for the C6 are identical to the gear set for the C4, with 2.46 for 1st, 1.46 for 2nd, 1 for 3rd and a reverse gear ratio of 2.18.

Is a C6 transmission a 3 speed?

To cut down on weight and cost, the C6 featured a simple, three speed Simpson planetary gearset. To aid in shift quality and long term durability, it was the first automatic transmission designed to use the Borg-Warner flexible shift band. It had disc clutch plates instead of bands on the low and reverse gears.

How do I identify a C6 transmission?

Look for a seam between the bell housing and the body of the transmission. If no seam exists, the transmission is a C6. If a seam does exist, it will be necessary to inspect the oil pan to determine whether the transmission is a C3 or a C4.

How good is a Ford C6 transmission?

The C6 is the strongest, most durable light duty automatic Ford has made. It was designed in the 60’s during the horsepower wars. The E4OD / 4R100 is not necessarily a “crap” transmission, it is based on the C6. A lot of the problems came from the programming.

Which is better C4 or C6 transmission?

The C4 transmission was primarily used in cars. The C6 transmission could handle more power. Due to the ability to handle more power, the C6 transmission was used in many Ford trucks with bigger engines, and in larger cars that were manufactured with bigger engines.

Will a C6 transmission bolt a 302?

Also , will a C6 tranny fit behind a 302 ? Yes, but not the one from the FE. Best bet is out of a later model 2WD truck. Unless you’re really flogging the car, I’d not use a C6 – they’re big, heavy, and eat more HP to turn than any other of your available trans options, but they are strong.

Which transmission is better C4 or C6?

How much HP can a Ford C6 transmission handle?

Yes a c6 will hold 500 hp but not a stock one with 3 high gear clutches or a stock valvebody….

Will a C6 bolt up to a 302?

No, it will not bolt up.

What engines bolt to a C6 transmission?

The 351m, 400, 429, 460 all bolt up to the C6 transmission without any adapters. But if you want a 429 or a 460 you need a kit for it to be able to fit into the engine bay without problems such as control arms, steering, exhaust, motor mounts, etc.

Will a C6 fit in a Foxbody?

Active Member. the bellhousing is an integral part of the c6 tranny, meaning it does not come off. so if you are getting a c6 from a big block, it won’t fit a 302.

What kind of overdrive does a Ford C6 have?

Meet Ford’s 4R100, a four-speed overdrive used on gasoline- and diesel-powered trucks until 2004. It’s the most advanced iteration of the three-speed Ford C6, but you need not perform major surgery** to gain some of its engineering superiority.

Is the Ford C6 automatic transmission backwards compatible?

Backwards compatibility is a well-known concept in tech circles, but you need not be a software engineer or Playstation 3 loyalist to appreciate it. The Ford C6 automatic transmission is a great example of this in the automotive world because it’s also the foundation of newer automatics in Ford trucks.

When did the Ford C6 transmission come out?

For the uninitiated, the Ford C6 was designed by Ford Motor Company and it was prevalent between 1966 and 1996. This is a heavy-duty three-speed automatic transmission and upon its launch, Ford marketed it as the SelectShift Cruise-O-Matic.

How does auto overdrive work on a Ford?

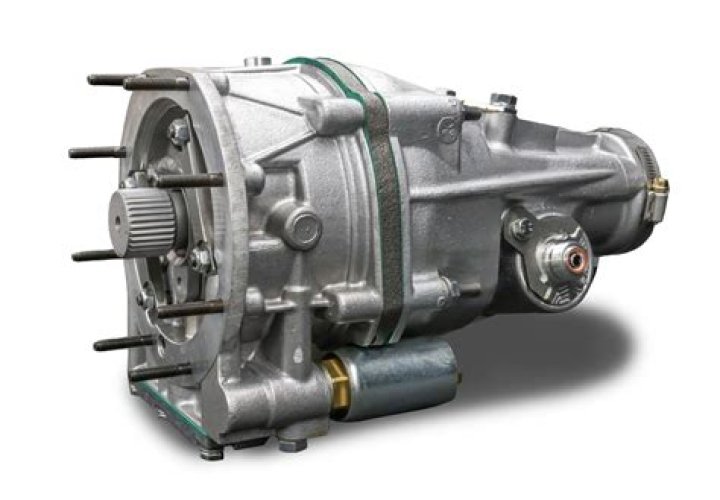

With the GEAR VENDORS dashswitch in “auto” you will have automatic overdrive just like the vehicle came with a factory system. 28% faster cruising gear nets a typical 22-28% improvement in fuel mileage. The GEAR VENDORS will shift on and off without attention of the driver and can be used while towing up to combined weights of 30,000 lbs.
