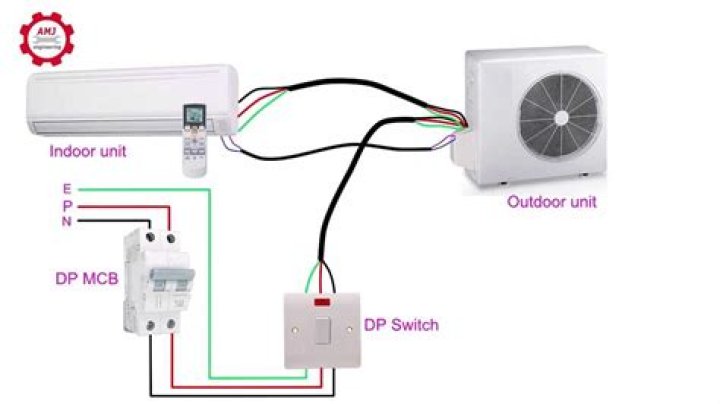

Does an air conditioner have a circuit breaker?
Well, an air conditioner usually trips the breaker because it’s pulling in more amps than the breaker is rated for. That is, if you have a 20-amp breaker and the AC pulls 30 amps, the breaker trips. So DON’T keep resetting the breaker and letting it trip. Constant tripping can harm equipment and cause a fire.
What is the breaker outside AC unit?
Your air conditioning unit has two breakers; one operates the outside unit while the other operates the inside. If the breakers appear tripped, turn the breakers off and then back on to reset them.
Does an air conditioner need a dedicated circuit?
Central air conditioners require a 220-volt or 240-volt dedicated circuit to operate. When your central AC starts up, it may require up to 5,000 watts of electricity. This makes it one of the largest consumers of electric power in your home.
Is the AC and furnace on the same breaker?
The breaker panel There are 2 breakers or fuses associated with the air conditioner. One is for the furnace or indoor unit. Unless the indoor unit is electric, it will have a single breaker.
Which is the first component in an air conditioning circuit?
The component at #1 in this air conditioning circuit and cycle diagram is the compressor. The compressor is the heart of the system; it keeps the refrigerant flowing through the system at specific rates of flow, and at specific pressures.
Where does the branch circuit in an air conditioner come from?
The branch circuit will originate from one of the single pole Overcurrent protective device OCPD included in an electrical panel. Then go through raceway system (conduits, ducts, …) to a disconnect means of some type suitable for the application .
Why is my air conditioner Tripping the circuit breaker?
The compressor is the heart of your air conditioning system and a failed compressor might mean you need a whole new system. This is why you should never keep turning on the AC circuit breaker after it trips, or ignore any of the problems described above.
What kind of wiring is in an air conditioning unit?
Inside the air handler unit, the high voltage wiring powers the indoor fan, the heater and provide power for the transformer. Inside the condenser/evaporator unit, the high voltage wiring powers the outside fan and the compressor. Heat Mode.
The component at #1 in this air conditioning circuit and cycle diagram is the compressor. The compressor is the heart of the system; it keeps the refrigerant flowing through the system at specific rates of flow, and at specific pressures.
What kind of circuit do I need for my air conditioner?
The neutral wire of the circuit will need to be identified, and remarked as a power conductor with red or black electrical tape. IMPORTANT: The changes in circuit wire designations from 120 volt to 240 volts must also be made at the receptacle outlet.
What to do if your air conditioner is Tripping the circuit breaker?
Turn the air conditioning system OFF at the thermostat (s). At your electrical panel, turn the AC circuit breaker switch to the ON position. IMPORTANT: wait 30 minutes with the air conditioner OFF. Be sure that the thermostat remains OFF so that your air conditioner’s internal circuit breaker can reset.
Which is the heart of the air conditioning system?
A simple air conditioning circuit and cycle diagram that you might find useful. Please feel free to copy this air conditioning circuit and cycle diagram and print it out. diagram is the compressor. The compressor is the heart of the system; it keeps the refrigerant flowing through the system at specific rates of flow, and at specific pressures.
