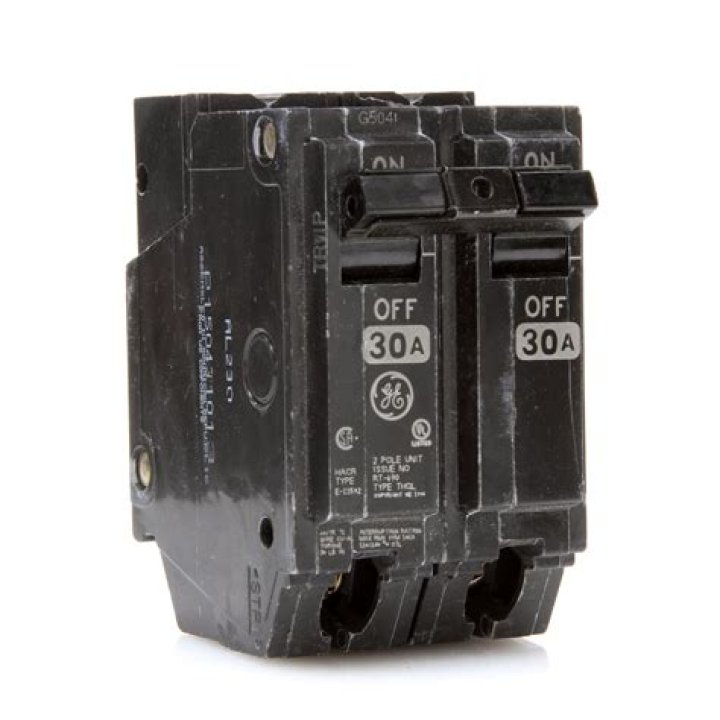

Does a 30 amp plug need a 30 amp breaker?
A 30 amp RV plug should really go with a 30 amp breaker. (You could plug it in to a 20 or 15 amp breaker, but you risk damaging your RV if you use more then the rated power the outlet/circuit is designed for. Worse, you could cause a fire if you overheat the wiring in your house.)
How many receptacles can be on a 30 amp breaker?
The NEC states that you can only have 30-amp receptacles on a 30-amp circuit. If it’s a multi-outlet circuit, you can have a 20-amp breaker protecting the #10 conductors and use 15amp and 20amp receptacles on the circuit.
Why does a 30 amp plug have a 50 amp plug?
The fact that a 30-amp device is shipped with a 50-amp plug shouldn’t bother you at all. The most likely reasons for the “overkill” plug are the following: the manufacturer used 50-amp plugs for all his high-power devices just to simplify the logistics (also see this similar question on Electronics SE ).
How much amperage does an appliance need?
You should know just how much amperage each appliance draws when it is in operation and the table below is a good quick reference for the most common appliances and how much Amps they can draw. Note that the Amps below are typical. Some appliances may require more or less depending on their efficiency and size.
How many amps does an appliance need to be derated?
But suppose the appliance is actually honest 30 amps. Most appliances must be derated by 125% when provisioning service (this is the same as the 80% thing, just tucked inside out). So our 30A appliance actually needs 37.5A provisioned. Round up to 40A wire and breaker. But hold on. Nobody makes a 40A plug and socket.
How many amps should you use on a 30 amp breaker?
30 amps is where a 30 amp breaker should cut off, and to avoid that, you should only use 80% of the breaker’s capacity. So for a 30 amp breaker, you shouldn’t be using more than 24 amps.
Do you need 30 amp or 50 amp service?
For RVs, you’ll mainly be dealing with 30-amp or 50-amp service. Your RV will require one or the other, and fortunately, there’s a simple way to check which type of plug your RV has: 30-amp plugs have three pins, and 50-amp plugs have four. 30-amp service is more common in smaller RVs with fewer power-hungry appliances.
How many volts can a 30 amp outlet handle?
Watts/Amps = Volts A 30 amp connection can handle 3600 watts – exceeding the capacity will cause the breaker in the RV or on the campground pedestal to trip. Take care when using multiple appliances on the same circuit. Devices that require more amperage, such as the roof air conditioner, usually have their own, larger circuit breakers.
What kind of AC plug does a 30 amp RV use?
For instance, you will typically find only single AC units in 30-amp service RVs. 30-amp RV plugs have a single 120-volt hot pin, a flat neutral, and a round ground pin.
Can you use a 50 amp surge protector with a 30 amp outlet?
Can I use a 50-amp surge protector with a 30-amp outlet? In this case, your RV is 50 amps and your power pedestal is 30 amps. You can use your 50-amp surge protector as long as you use the right adapter (a 50-amp to 30-amp adapter, where the 50-amp side plugs into the surge protector).
