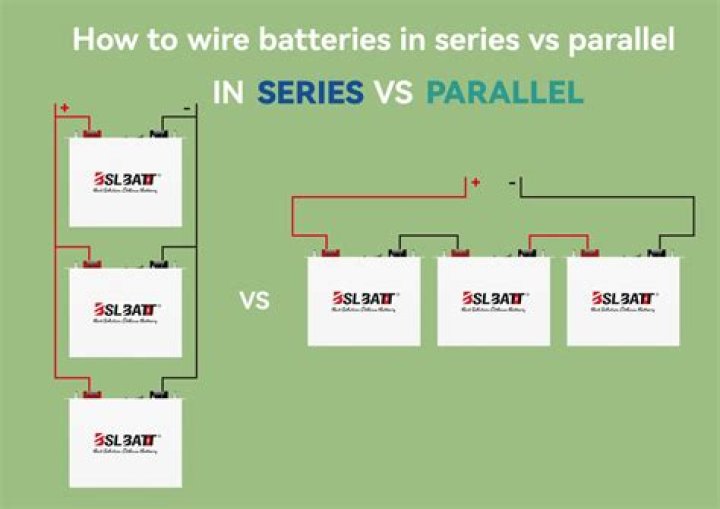

Do you have to wire batteries in series?

You’re right, the two batteries need to be connected in series in order to turn them into one big 12-volt battery (so one short cable would connect the “+” of one battery to the “-” of the other… you can see a diagram showing that a the top of this page: ).

What is the wiring diagram for a Fleetwood battery?

2001 Bounder Wiring Diagram Universal Wiring Diagram Designs It reveals the elements of the circuit as streamlined shapes as well as the power and also signal connections in between the devices. Fleetwood battery wiring diagram.

How are battery switches and charging relays wired together?

The following basic wiring diagrams show how batteries, battery switches, and Automatic Charging Relays are wired together from a simple single battery / single engine configuration to a two engine, one generator, and four battery bank system.

What kind of connection do you need for 24 volt battery?

Series/Parallel Connection: A combination of series and parallel connections is required if you need for example a 24 Volt battery set with a higher capacity. The battery should then be cross-wired to the system using the plus pole of the first and minus pole of the last battery. This type of arrangement shown is a 24v, 240Ah bank.

How many batteries do you need for a motorhome?

Those who aren’t well-versed in RV systems might be perplexed to know that a standard motorhome requires two batteries. The first is a standard starter battery, as in a typical car, used to give the engine a brief but powerful jolt to help it start.

When does the chassis and the electrical system come together?

An important thing for all owners to recognize is that there is a point at which the chassis and the house electrical systems come together. For the most part converters limit that merging of the house and chassis to a single point.

Can a car engine be started by a chassis battery?

Yes, your engine is started and operated by the chassis battery which is separate of the house system. Safety would require that you isolate the positive lead or double check with a meter to insure that 12v was not present on the coach side. You never know who could have changed the wiring and bypassed the isolator for charging..

What kind of voltage does a Prevost chassis have?

For the most part converters limit that merging of the house and chassis to a single point. There are some exceptions and they will not be covered here because they tend to be converter specific and proprietary. All chassis electric is DC voltage, both 12 volts and 24.

What’s the best way to wire 4 batteries in a RV?

If you can’t fit 4 batteries in a row in your RV battery storage space you can connect them the Cross-Diagonal way in a block as shown in the graphic below. As you can see, each battery still has a long and short connecting wire and should still be perfectly balanced.

Can a 24v battery be wired in parallel?

When wiring batteries in series you are increasing the voltage they will put out. For example, two 12V batteries wired in series will become a large 24V battery, which is too large for RV use. That’s why you wire them in parallel instead because you only want to increase the amp hours, not the voltage.

Can you wire two 6 volt batteries together?

You can do this by wiring two 6 volt batteries together in series by connecting a positive with a negative. When you do this you increase the voltage but not the amperage. For example, if you have two 12V 100ah deep cycle RV batteries and you wire them together in parallel you end up with 12 volts and 200ah.

How is the power of a house battery measured?

Obviously, you’ll want the most power for the least cost in any battery. For house batteries, the power is measured in either amp-hours (AH) or reserve capacity (RC). AH refers to how many amps the battery will put out over a 20-hour period, while RC refers to how many minutes the battery can support a 20 amp output.
