The gear wheels move in opposite directions. If necessary, review what is meant by the word rotation (circular motion around a central point). Accept all reasonable answers. With three wheels, the first and third wheels rotate in the same direction; the second, or middle wheel, rotates in the opposite direction.
Do gears all move in the same direction?
Yes, but only if the teeth do not engage. If the teeth engage and both gears are moving in the same direction, either the gears will not move, or one or both gears will shear it’s teeth.
Will the gear turn in the same direction or in opposite directions?

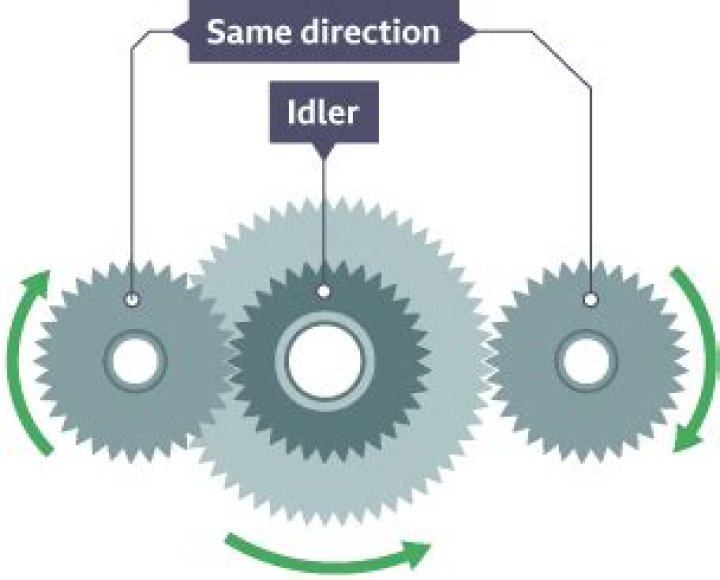

Two meshed gears will rotate in opposite directions. An Idler Gear allows the drive and driven gears to rotate in the same direction.
Why do gears move in opposite direction?
The idler gear rotates in the opposite direction as the driver gear, and the follower gear rotates in the opposite direction of the idler, the same direction of the driver. It is also used to change the spacing between the input and output axles.What gears turn in the same direction?
Two gears which are meshed together turn in opposite directions. An idler gear in the middle makes neighboring gears turn in the same direction. … A crown gear can change the direction of rotary motion through a 90 degree angle.
Do gears move at the same speed?
A gear is a simple mechanical device that transmits rotational motion (force) to another gear or device. … Thus, the larger a gear’s radius, the slower its rotational speed. Gear Ratios. When the teeth of two gears interlock, the gears themselves move at the same speed (meters per second or feet per minute).
Why do modern cars have 6 gears?
One of the most popular reasons for making an automatic transmission with more gears is for smoother acceleration and deceleration. When there are more gears in the transmission, closer gear ratios can be used. For the driver, that means the engine RPMs don’t vary as much when speeding up and slowing.
What is a bevel gear used for?
Bevel gears are used to connect shafts whose axes lie at an angle to each other, although in most applications the shafts are at right angles. The tooth profile is basically the same as used for spur gears except that the tooth gets progressively smaller as it approaches the apex of the projected cone.Why do we use a chain to connect gears instead of having them connect directly?
In science, we say gears are simple machines. … Instead, a lubricated chain connects together the gears (known as sprockets) on the wheel you pedal with those on the back wheel. That’s simply because the pedal wheel and the back wheel are some distance apart and a chain is the easiest way to link them together.
Are bigger gears faster?A higher/bigger gear will not make you go faster. … (Before going any further, the basics of gearing are that the larger the front chainring, the higher the gear. For the rear, the smaller it is, the higher.)
Article first time published onWhat is the direction of rotation?
The direction of rotation is also referred to as the sense of rotation and indicates the direction (clockwise or anti-clockwise) in which bodies rotate around an axis.
What is it called when two gears fit into each other?
Two or more meshing gears, working in a sequence, are called a gear train or a transmission. The gears in a transmission are analogous to the wheels in a crossed, belt pulley system.
What is driven gear?
In all gear systems one gear will be powered. This is called the drive gear and the other gear is called the driven gear. … If the number of teeth is the same on each gear, then the driven gear rotates at the same rotational speed as the driving gear, but in the opposite direction.
Which gear is the idler gear?
An idler gear in a gear train is defined as the gear placed between the input and output shafts (between the drive gear and the driven gear). For example, it is used to change the rotational direction of the output shaft, or to fill a large gap between the input and output shafts without affecting the speed ratio.
How many times will gear a rotate compared to gear D?
The gear ratio of 6:1 indicates that the driver gear A will make six revolutions for every one by the driven gear D, and that gear D will have 6 times more torque than gear A.
Does the size of an idler gear matter?
An idler gear does not affect the gear ratio between the input and output shafts. … The intermediate gears, regardless of their size, do not alter the overall gear ratio of the chain, except to change the direction of rotation of the final gear.
Why do some cars have 9 gears?
Why More Gears? According to Ford Motor Company’s chief engineer of transmissions, Craig Renneker, more gears give powertrain engineers more gear spread to work with. This means first gear can be shorter for better off-the-line acceleration while the top gears can be taller for better fuel economy.
Does more gears mean more speed bike?
Just remember that larger gears at the rear mean easier pedalling but more torque, and larger gears at the front mean harder pedalling but more speed. Going from “easier” gears to “harder” gears is called “upshifting”, and the reverse is called “downshifting”.
Are there cars with 4 gears?
Toyota’s smallest cars are all available with four-speed automatics, including the boxy Scion xB. You can’t even get a stick shift in this quirky and not particularly appealing box-the-tC-came-in.
Do gears on the same shaft have the same speed?
Originally Answered: Is it necessary for the two gears mounted on the same shaft rotate with same speed? Yes the will have same RPM but different torque. The smaller gear will have low torque whereas the bigger gear will have high torque.
Do smaller gears turn faster?
Since the teeth on both gears must be of the same size for the gears to intermesh, the smaller gear has fewer teeth than the larger one. … In other words, the smaller gear spins faster than the bigger one.
Are smaller gears faster?
If the gears are of different sizes, they can be used to increase the power of a turning force. … The smaller wheel turns more quickly but with less force, while the bigger one turns more slowly with more force.
Where are gears used?
This type of gear is used for a wide range of speed ratios in a variety of mechanical applications, such as clocks, pumps, watering systems, power plant machinery, material handling equipment, and clothes washing and drying machines.
What connects the front gears to the back gears?
Bikes have one, two or three front chainrings (gears). Cassette: Your bike’s rear cassette is the stack of cogs (gears) mounted on the right-hand side of your rear wheel. Chain: The chain connects the front chainrings and the rear cogs, so that when you turn the pedals you also turn the wheels.
What is the difference between bevel and miter gears?
Bevel gears are gears designed to transmit motion between intersecting axes. Perpendicular arrangements are most common, but bevel gears can be manufactured for nearly any angle. … Miter gears are bevel gears manufactured in a 1:1 ratio, with the same number of teeth on mating gears and with perpendicular axes.
What is rack in gears?
A rack and pinion is a type of linear actuator that comprises a pair of gears which convert rotational motion into linear motion. This combination of Rack gears and Spur gears are generally called “Rack and Pinion”.
What are the 4 types of gears?
- Spur Gear. Spur gears transmit power through shafts that are parallel. …
- Helical Gear. …
- Double Helical Gear. …
- Herringbone Gear. …
- Bevel Gear. …
- Worm Gear. …
- Hypoid Gear.
What gear should I use on a flat road?
For riding on flat roads, it is recommended to use the middle gear. It is a common choice among bikers as it helps you reduce pressure from your feet onto the pedals.
How many teeth should a gear have?
So, the minimum teeth number for standard gears is 17.
Which sprocket is faster?
Substituting a larger front or smaller rear sprocket lowers the ratio (sometimes called “taller” gearing), resulting in more speed for a given engine rpm. Likewise, a smaller front or larger rear sprocket gives less speed for a given rpm (“shorter” gearing).
What direction does the earth move?
Earth’s rotation or Earth’s spin is the rotation of planet Earth around its own axis, as well as changes in the orientation of the rotation axis in space. Earth rotates eastward, in prograde motion. As viewed from the north pole star Polaris, Earth turns counterclockwise.
