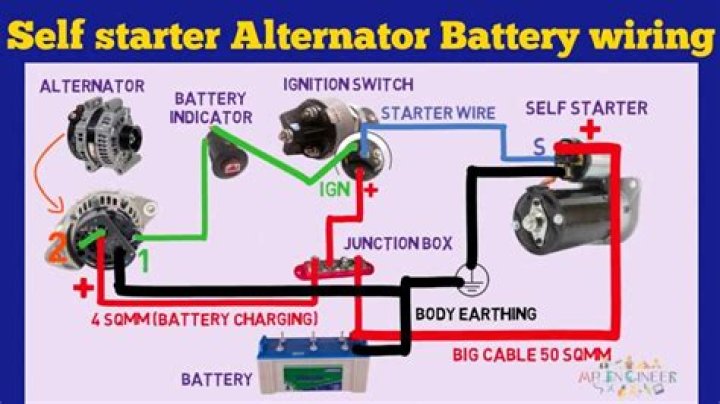

Can you wire alternator straight to battery?
Attach a cable directly from the alternator output post to the positive side of the battery. This allows for full output from the alternator to the battery when heavy electrical demands are placed on the alternator. Wire the alternator controls.
What wires go to an alternator?
Remote voltage sense alternators: The three wires connected to the alternator are the positive, negative cables and a third smaller gauge wire connected to the alternator remote sense or (S) terminal. To determine if your vehicle has remote sense, voltage will always be present on this terminal at all times.
Does the positive wire go to the alternator?
One wire: Alternators that have one positive wire connected to the alternator has the ground connected to it’s case. The battery positive wire connects to the starter. The voltage sensing wire connects to the battery, and the ignition wire connects from the alternator to the key switch.
Where does the alternator wire go?
Locate the terminal on the alternator labeled “B”, “Bat” or “Pos.” All alternators have this terminal. The wire that connects to it is red and goes to the battery. It is a heavy duty wire as it has to carry high current.
What is an exciter wire on an alternator?
The exciter wire is used to turn on the voltage regulator. This wire, when unplugged, should have approx. 12.5 volts with the key on. If it does not then the alternator will not work.
Can an alternator be installed backwards?
The alternator diodes would not like being connected in reverse, and maybe cause the diodes to fail. This could result in heat and damage to the alternator. Attempting to start the engine should make no difference, the damage would be done as soon as the reverse battery connection was made.
Where does the wire go on an alternator?
This connector is manufactured so it may be inserted into the connector socket on the alternator one way only. If you are able to look at a manufacturer’s diagram of the alternator’s connectors, the wire that slides over Pin 1 of the alternator leads to the positive (+) connection on the vehicle’s battery and senses voltage.
How to unbolt battery cable from alternator to battery?
Jul 19, · 2-unbolt the 10mm nut for the wire at the battery fuse panel cut the zip ties along the way and pull the cable out of its brackets.
Can a battery charger not be connected to an alternator?
Note: the alternator charge wire routes direct to the battery and not through any switch connection, the alternator will not operate correctly if not connected direct to battery or directly through the ammeter.
Do you need an alternator in a 1960 car?
Vehicles older than a 1960 model may require all of the connections of the alternator, except ground, to be connected to positive and negative terminals of an external voltage regulator instead of directly to battery and ignition connectors.
Where does the wire go in an alternator?
Check if your alternator has a terminal marked “Ign” or “L.” The terminal is smaller than the previous two. The wire that attaches to this terminal can vary in color and the opposite end goes to the ignition and/or dashboard warnings system. Most typical alternators have this wire connection.
How to properly wire your marine alternator?
ALTERNATOR WIRING… How do I wire my marine alternator? Many alternators require ignition voltage to initiate charging. You must verify that all required connections are connected to the proper terminal and have the correct voltage in order for the alternator to operate properly.
Why does an alternator need a heavier wire than a stock battery?
“An alternator with a higher amp output than stock requires a heavier charge wire (the wire that connects the alternator to the battery) because of the increased amperage.” To evaluate your charging system, try this simple experiment.
Are there any disadvantages to one wire alternators?
Another minor disadvantage to one-wire alternators is the rotor in the alternator must achieve a certain speed to self-excite. This usually requires the driver to rev the engine to increase internal voltage to sufficiently excite the alternator to begin charging.
