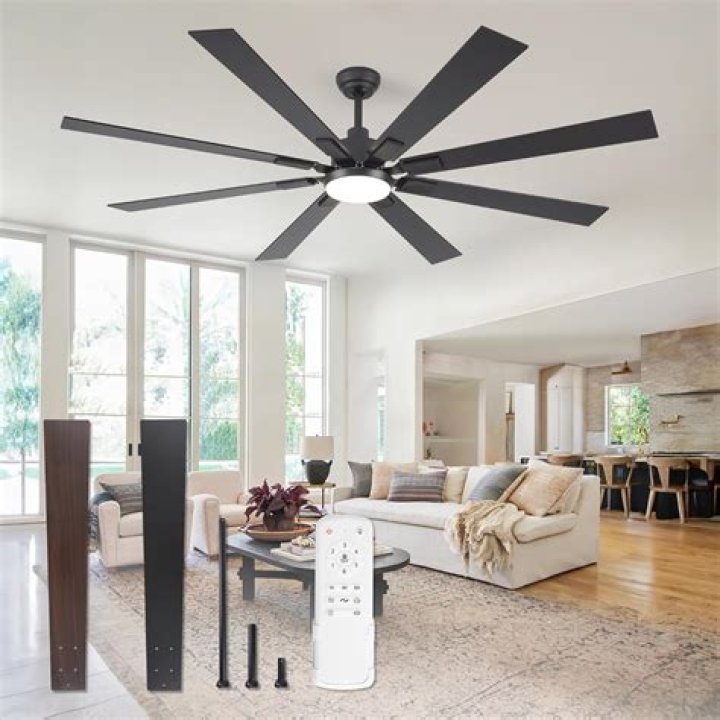

Can any ceiling fan be variable speed?
Variable speed controls must be specially designed for use with ceiling fans. Using a dimmer switch is not recommended for use with a ceiling fan. Converting a three-speed ceiling fan to variable speed is even easier if the original fan was wired to a light switch to turn the fan on or off.
Can you change ceiling fan speed?
Check the pull chain switch on the fan. A bad switch, or missing speed setting, will cause the fan to run slowly. Turn the fan off and allow it to stop moving. Pull the chain and turn the fan on the lowest setting, then listen to the fan motor as you pull the chain and move through the progressive speed settings.
How do you wire a fan speed controller?
Connect the white wire from the supply line to the white wire of the fan motor. Make sure that the wire strands are straight and secure the wire leads of the control to the circuit wires by twisting them together. Twist a wire nut onto each connection. shows upward position.
How do variable speed ceiling fans work?
A ceiling fan is a single phase induction motor. The most common way variable speeds are achieved for ceiling fans is by switching in various capacitors for various speeds. This works because the speed of the induction motor is dependent on the phase relationship between current and voltage.
Does changing capacitor increase fan speed?
The idea of adjusting the voltage across the motor of the fan is the same as ever. When you increase the capacitance, the fan motor’s voltage goes up, but the capacitor’s goes down. The fan’s speed goes up.
How does a fan speed controller work?
Fan speed is reduced by placing a capacitor in series with the switched live feed to the fan reduce power. The capacitor acts as a dropper. Speed depends on the value of the capacitor in circuit. The speed control switch selects a different capacitor to give different speeds.
Can a ceiling fan be wired to a variable speed control?
Wiring the fan to a variable speed control switch lets you make fine adjustments to the fan’s speed. Variable speed controls must be specially designed for use with ceiling fans. Using a dimmer switch is not recommended for use with a ceiling fan.
How is variable speed control accomplished in a drive system?
In each of the three drive system components, variable speed control is possible. Variable speed control can be accomplished, for example, using a frequency converter as the energy control component, a two speed motor as the motor component and gears as the transmission component.
What kind of speed control do I need for a universal motor?
A universal motor, which can run on either 120V single phase AC or DC, can be controlled by what is commonly called a “router speed control,” but is actually an SCR DC speed control, or by a simple rheostat. The SCR controller is a better choice because it maintains constant torque.
How can I control the speed of my motor?
Install a variable rheostat and you can control your motor’s speed. Disconnect the single-phase motor from the power source. Use a knife and cut the wire that connects the motor to the power source. Make the cut about 12 to 18 inches away from the motor.
