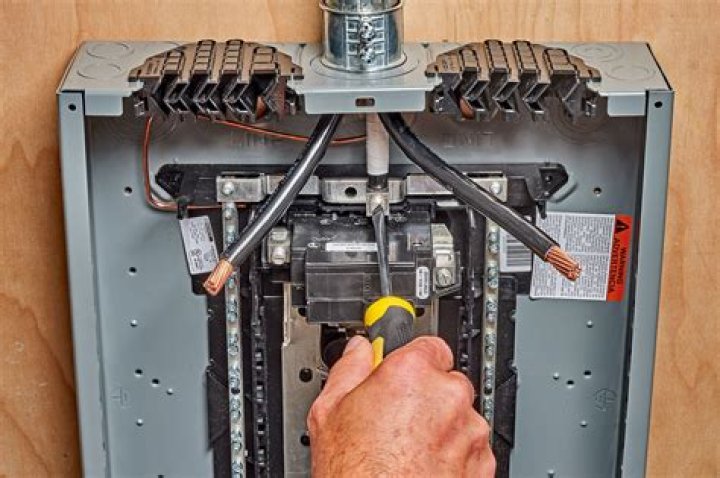

Can a second breaker box be added to an existing breaker box?
Tying this second breaker box into the house circuitry is as simple as adding another breaker to the main panel. As long as the new circuit is wired to carry enough amps to drive all of the circuits that will be installed into it, this is a great way to add new flexibility to an old circuit panel. Step 1
How are circuit breakers installed in a panel?
This diagram illustrates some of the most common circuits found in a typical 200 amp circuit breaker service panel box. The breakers are installed in a panel so that contact is made with one of two hot bus bars running down the middle of the box. The hot wire for a branch circuit is connected to the breaker by a set screw on the base.
Can a subpanel be attached to a breaker box?
As long as the new circuit is wired to carry enough amps to drive all of the circuits that will be installed into it, this is a great way to add new flexibility to an old circuit panel. Mount the subpanel either adjacent to the main breaker box or in a remote location near where the new circuits will be installed.
Where do you put the Black Wire in the breaker box?
Slide the wire into the main breaker box through a port on the side of the box. Using a 50-amp 240-volt breaker, insert the black wires into the breaker and secure them by tightening the screws.
This diagram illustrates some of the most common circuits found in a typical 200 amp circuit breaker service panel box. The breakers are installed in a panel so that contact is made with one of two hot bus bars running down the middle of the box. The hot wire for a branch circuit is connected to the breaker by a set screw on the base.
How big of a circuit breaker do I need for an AC unit?
Kevin, the issue is not what size circuit breaker you should install, the issue is to make sure that the installed circuit will be exactly what the air conditioning unit is specifying which in this case is a 30 amp 230 volt circuit. The 30 amp circuit requires #10 AWG wire or 10/2 cable that will be protected by a 30 amp circuit breaker.
Do you need to replace a circuit breaker box?
When replacing that circuit breaker box, don’t assume you’ll need to upgrade your capacity. Most modern homes actually use less amperage, because many devices use less energy than in previous decades. You also want to steer clear of reconditioned breakers that you can find online or in a local supply store. They won’t pass inspection.
What kind of circuit breaker do you need for a kitchen range?
A 50 amp circuit like this is used for new kitchen range installations. This diagram illustrates wiring for a circuit breaker with a built-in ground fault circuit interrupter or gfci. This 20 amp, 120 volt breaker is a form of gfci that can be installed at the circuit source.
